Kennametal

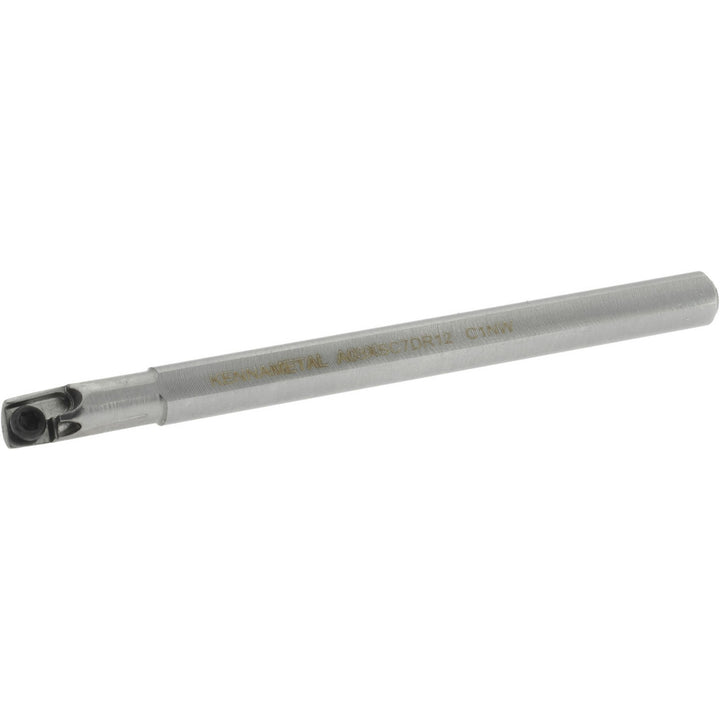

Indexable Boring - Kennametal 1289016
MFR# 1289016Cat# A03XSC7DR12Series C
$142.79List $174.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1289016 indexable boring. Series C.
Specifications
Center to cutting edge0.0950
Coolant hole diameter0.0400
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCDC
Insert holding methodScrew
Insert inscribed circle0.1560
Insert thickness0.0400
Lead angle7
Manufacturers catalog numberA03XSC7DR12
Maximum bore depth in1/2
Minimum bore diameter0.1800
Multi use toolNo
Overall length in2-1/2
RakeNeutral
Rake angle0.00
Shank diameter in3/16
Toolholder styleCSBI
Tool materialSteel
