Kennametal

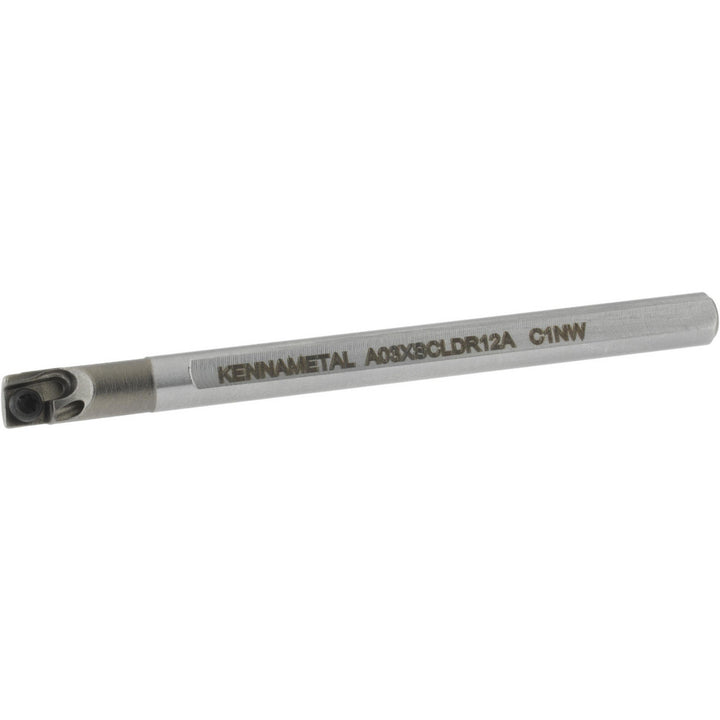

Indexable Boring - Kennametal 1289024
MFR# 1289024Cat# A03XSCLDR12ASeries C
$142.79List $174.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1289024 indexable boring. Series C.
Specifications
Center to cutting edge0.1040
Coolant hole diameter0.0400
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCDC
Insert holding methodScrew
Insert inscribed circle0.1560
Insert thickness0.0400
Lead angle5
Manufacturers catalog numberA03XSCLDR12A
Maximum bore depth in3/4
Minimum bore diameter0.2080
Multi use toolNo
Overall length in2-1/2
RakePositive
Rake angle5.00
Shank diameter in3/16
Toolholder styleCSBI
Tool materialSteel
