3.42807R001 Solid Carbide Insert, Grade KC7215, TiAlN - Kennametal 1316526

Kennametal

3.42807R001 Solid Carbide Insert, Grade KC7215, TiAlN - Kennametal 1316526

MFR# 1316526ISO/ANSI# 3.42807R001Cat# 3.42807R001Series 3.42807

$31.62List $38.59 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC7215
MaterialSolid Carbide
CoatingTiAlN

Description

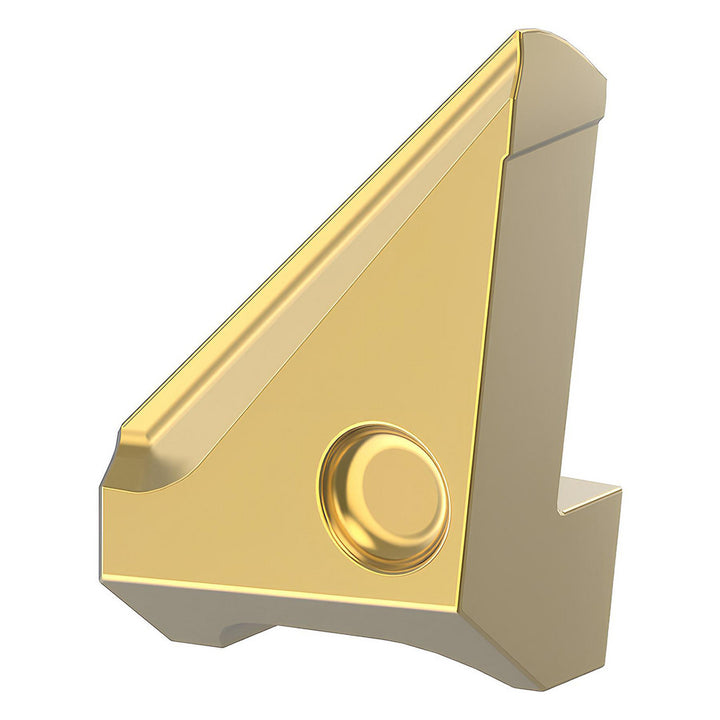

The Kennametal 1316526 is a 3.42807R001 solid carbide indexable insert, grade KC7215, TiAlN coated. Suited for steel, stainless steel, hard material, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi code3.42807R001
Coating finishTiAlN
Coating processPVD
Cutter series compatibilitySEFAS
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert style3.42807
Iso code3.42807R001
Length range0.3200 to 0.4000
Manufacturers catalog number3.42807R001
Manufacturer gradeKC7215
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeC3; C4; C7
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Hard Material; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.4724
