Kennametal

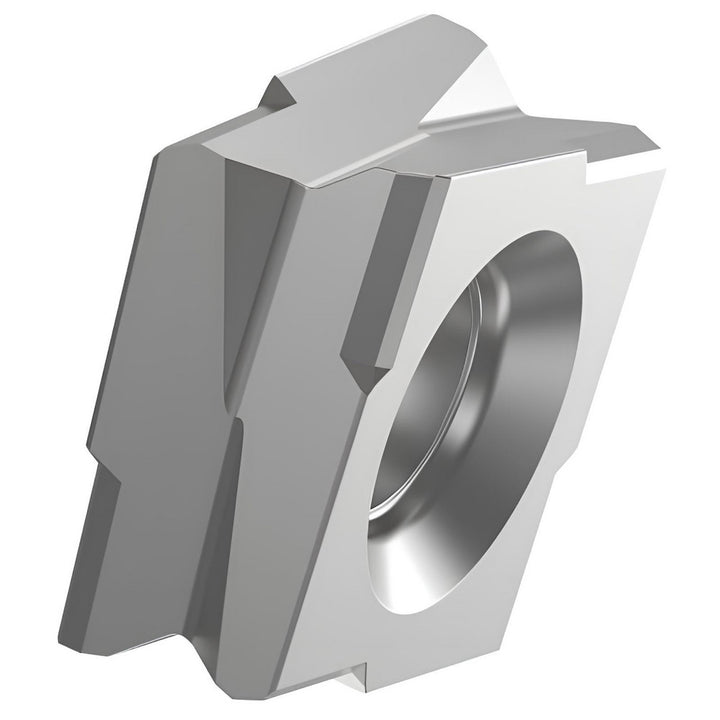

SPHX1205ZCTRGPK Ceramic Insert, Grade KY3500 - Kennametal 1322958
MFR# 1322958ISO/ANSI# SPHX1205ZCTRGPKCat# SPHX1205ZCTRGPKSeries SPHX
$40.52List $48.59
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKY3500
MaterialCeramic
Description
The Kennametal 1322958 is a SPHX1205ZCTRGPK ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi codeSPHX1205ZCTRGPK
Chip breakerGP
Coating processUncoated
Cutter series compatibilityFix-Perfect
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialCeramic
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205ZCTRGPK
Length0.2130
Length range0.0000 to 0.3200
Manufacturers catalog numberSPHX1205ZCTRGPK
Manufacturer gradeKY3500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.3961
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakePositive
Rake angle30
Relief angle11.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
