Kennametal

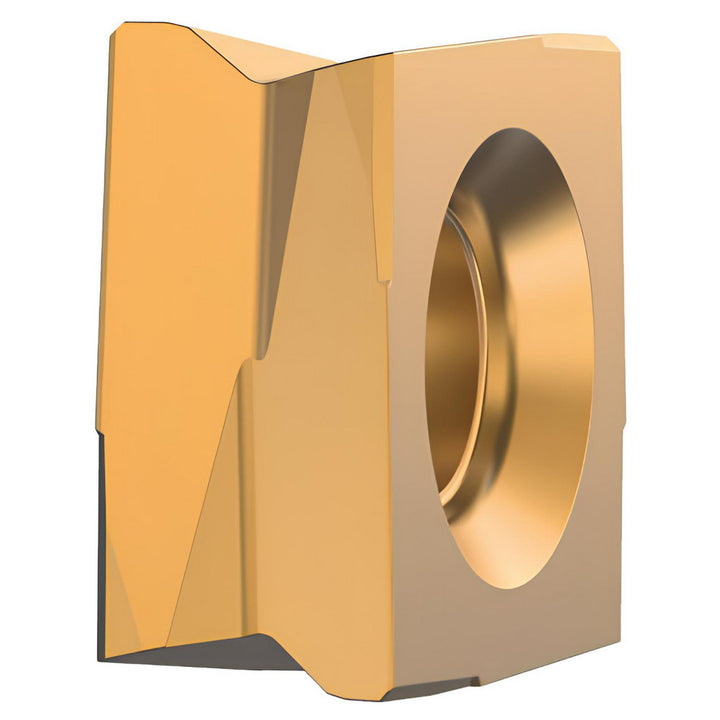

SPHX1205PCSRGPB Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1505865
MFR# 1505865ISO/ANSI# SPHX1205PCSRGPBCat# SPHX1205PCSRGPBSeries SPHX
$40.15List $49.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1505865 is a SPHX1205PCSRGPB solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSPHX1205PCSRGPB
Chip breakerGPB
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityFix-Perfect
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205PCSRGPB
Length0.2587
Length range0.0000 to 0.3200
Manufacturers catalog numberSPHX1205PCSRGPB
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.3953
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
