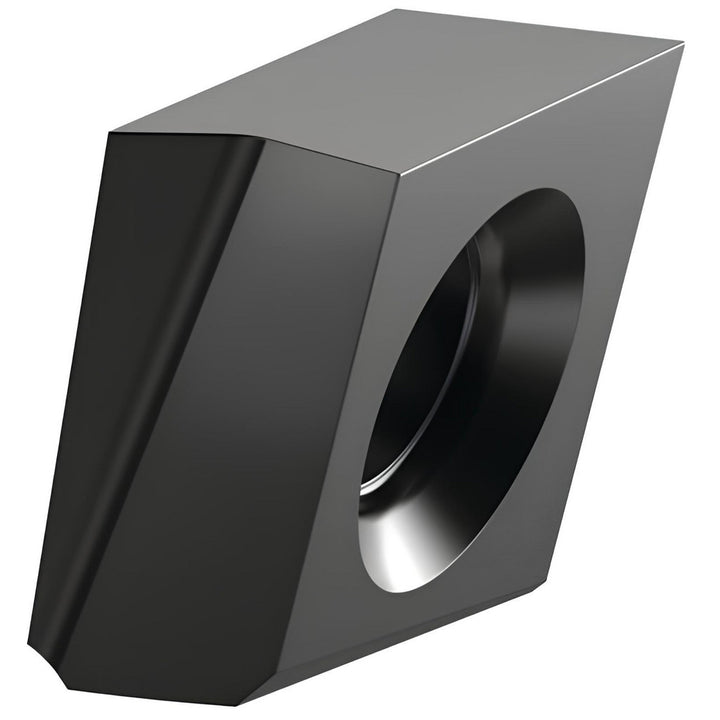

SPHX1205ZCER-GP1W Solid Carbide Insert, Grade KCK15, TiN - Kennametal 1516937
MFR# 1516937ISO/ANSI# SPHX1205ZCER-GP1WCat# SPHX1205ZCER-GP1WSeries SPHX
$30.19List $36.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1516937 is a SPHX1205ZCER-GP1W solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeSPHX1205ZCER-GP1W
Chip breakerGP
Coating finishTiN
Coating processMTCVD
Cutter series compatibilityFix-Perfect
Cutting edge styleWiper
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205ZCER-GP1W
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberSPHX1205ZCER-GP1W
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
