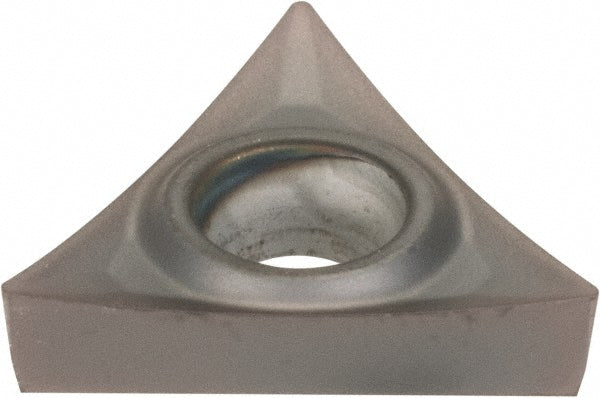

Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1523196

Kennametal

Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1523196

MFR# 1523196ISO/ANSI# TCGT21505HPSeries Screw-On

$30.80List $37.60 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1523196 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerHP
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle60
Industry standard numberTCGT21505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21505
Insert styleTCGT
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog number1523196
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
