Kennametal

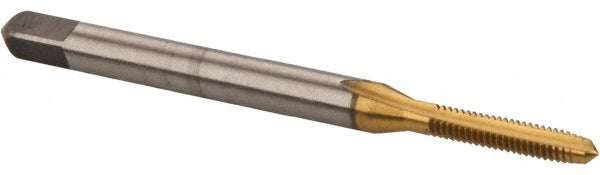

#4-40 UNC High-Speed Steel Standard Tap, TiN - Kennametal 1544247
MFR# 1544247Series 2305; 2305
$18.68List $23.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingTiN
Description
The Kennametal 1544247 is a #4-40 UNC High-Speed Steel Standard tap with a TiN finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Tap typeStandard
Thread directionRight Hand
Thread length in9/16
Thread limitH2
Thread size in#4-40
Thread standardUNC
