Kennametal

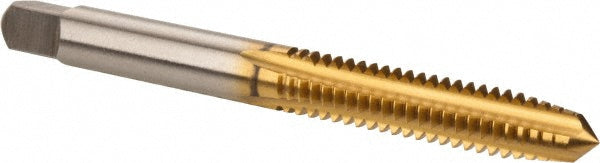

1/4-20 UNC High-Speed Steel Standard Tap, TiN - Kennametal 1544520
MFR# 1544520Series 2305; 2312
$16.26List $20.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingTiN
Description
The Kennametal 1544520 is a 1/4-20 UNC High-Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Tap typeStandard
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
