Kennametal

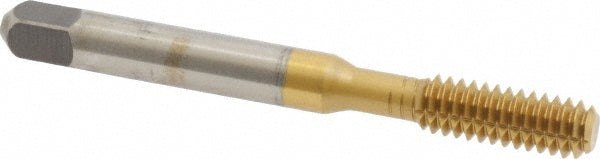

1/4-20 UNC High-Speed Steel-E Tap, TiN - Kennametal 1545654
MFR# 1545654
$37.32List $47.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiN
Description
The Kennametal 1545654 is a 1/4-20 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel-E
Material applicationSteel
Material application codeP
Oil grooves4
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Thread directionRight Hand
Thread length in5/8
Thread limitH4
Thread size in1/4-20
Thread standardUNC
