Kennametal

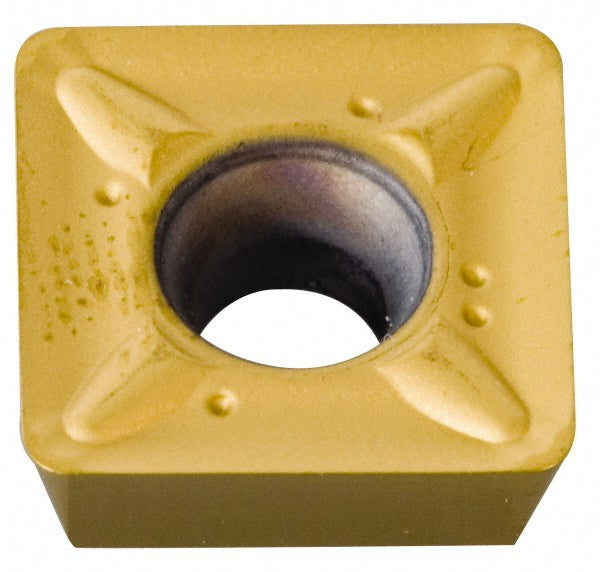

SDCT1204PDERLD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1553306
MFR# 1553306ISO/ANSI# SDCT1204PDERLDCat# SDCT1204PDERLDSeries SDCT
$30.88List $37.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1553306 is a SDCT1204PDERLD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeSDCT43PDER8LD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityKSSM
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSDCT
Iso codeSDCT1204PDERLD
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDCT1204PDERLD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
