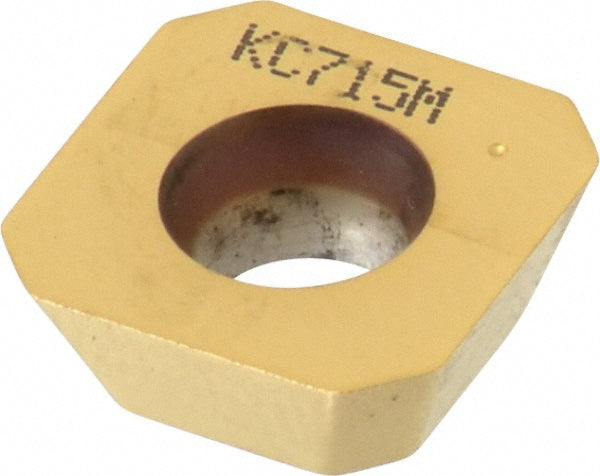

SEHW1204AFN Solid Carbide Insert, Grade KC715M, TiN - Kennametal 1556286
MFR# 1556286ISO/ANSI# SEHW1204AFNCat# SEHW1204AFNSeries SEHW
$33.29List $40.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC715M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1556286 is a SEHW1204AFN solid carbide indexable insert, grade KC715M, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi codeSEHW43A6
Chip breakerFlat Top
Coating finishTiN
Coating processPVD
Corner radius0.0394
Cutting edge styleSharp
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHW
Iso codeSEHW1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHW1204AFN
Manufacturer gradeKC715M
Material applicationSteel; Stainless Steel
Material gradeC6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
