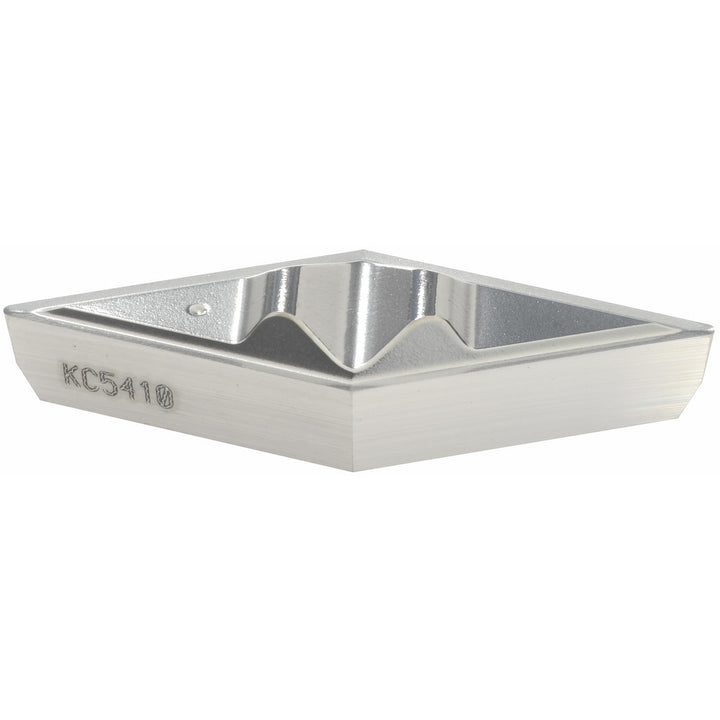

VCGR160404 Carbide Insert, Grade KC5410, TiB2 - Kennametal 1560781
MFR# 1560781ISO/ANSI# VCGR160404Series Top Not
$36.25List $44.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1560781 is a VCGR160404 carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiB2
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code331
Insert styleVPGR
Iso codeVCGR160404
Manufacturer gradeKC5410
Material gradeN05; N10; N15; N20
Maximum depth of cut0.2179
Msc manufacturer numberVPGR331
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR331; VCGR160404
Thickness in3/16
Width in3/8
