Kennametal

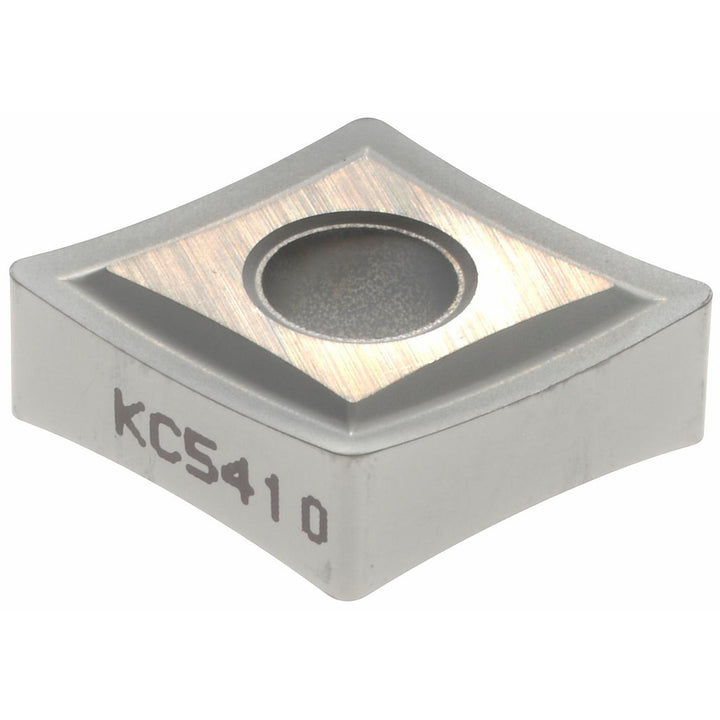

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1560795
MFR# 1560795ISO/ANSI# CNMP120408Series KENLOC
$25.07List $30.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1560795 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNMP432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMP432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMP
Insert thickness in3/16
Iso insert codeCNMP120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1560795
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
