Kennametal

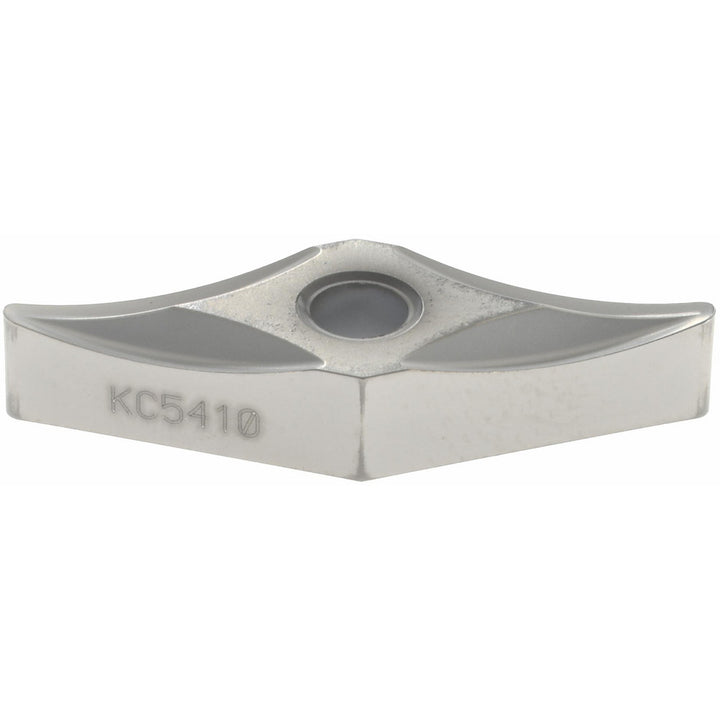

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1560834
MFR# 1560834ISO/ANSI# VNMS160408Series KENLOC
$33.78List $41.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1560834 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeVNMS332
Ansi size code332
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMS332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMS
Insert thickness in3/16
Iso insert codeVNMS160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number1560834
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
