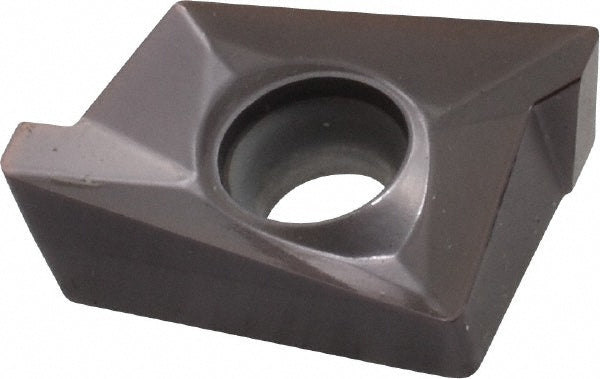

ANGT1606PPFRLGJ Solid Carbide Insert, Grade KC510M, TiAlN - Kennametal 1586645
MFR# 1586645ISO/ANSI# ANGT1606PPFRLGJCat# ANGT1606PPFRLGJSeries ANGT
$46.57List $56.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC510M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1586645 is a ANGT1606PPFRLGJ solid carbide indexable insert, grade KC510M, TiAlN coated. Suited for steel, cast iron, non-ferrous metal, hard material.
Specifications
Chip breakerLG
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size25
Insert size code254
Insert styleANGT
Iso codeANGT1606PPFRLGJ
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberANGT1606PPFRLGJ
Manufacturer gradeKC510M
Material applicationSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Rake angle30
Relief angle0.00
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4330
