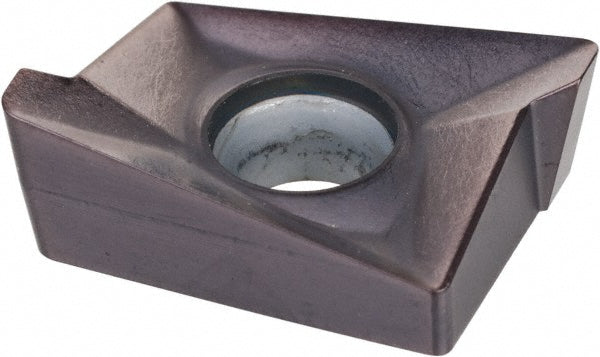

ANGT160608PPERLG Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1586646
MFR# 1586646ISO/ANSI# ANGT160608PPERLGCat# ANGT160608PPERLGSeries ANGT
$51.03List $62.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1586646 is a ANGT160608PPERLG solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Chip breakerLG
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Inscribed circle in1
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size25
Insert size code2542
Insert styleANGT
Iso codeANGT160608PPERLG
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberANGT160608PPERLG
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Primary workpiece materialCast Iron
Rake angle30
Relief angle0.00
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4331
