Kennametal

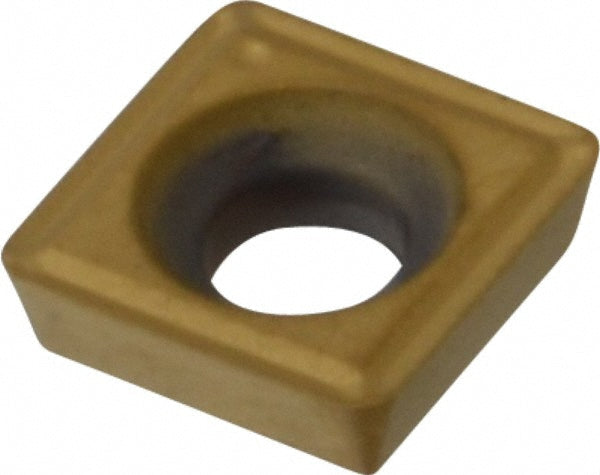

SDCH080208ENLD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1596069
MFR# 1596069ISO/ANSI# SDCH080208ENLDCat# SDCH080208ENLDSeries SDCH
$31.98List $39.03
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1596069 is a SDCH080208ENLD solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLD
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1402
Included angle degree90
Inscribed circle0.3272
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size26
Insert size code26152
Insert styleSDCH
Iso codeSDCH080208ENLD
Manufacturers catalog numberSDCH080208ENLD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle15
Relief angle15.00
Thickness in3/32
Thickness range0.0000 to 0.1000
