Kennametal

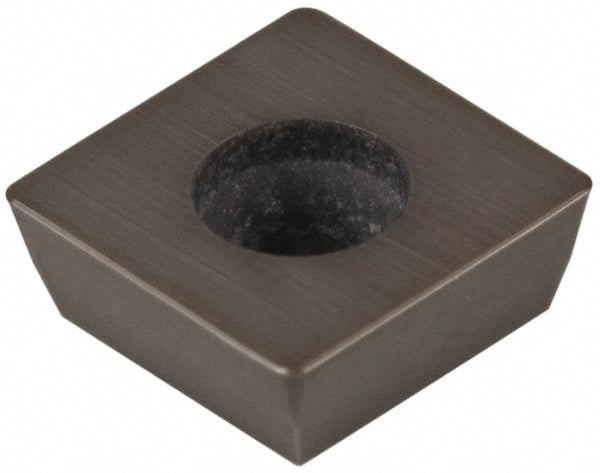

SDCW1204PDSRGN Ceramic Insert, Grade KY3500 - Kennametal 1597226
MFR# 1597226ISO/ANSI# SDCW1204PDSRGNCat# SDCW1204PDSRGNSeries SDCW
$25.05List $30.04
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKY3500
MaterialCeramic
Description
The Kennametal 1597226 is a SDCW1204PDSRGN ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Chip breakerGN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialCeramic
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDCW
Iso codeSDCW1204PDSRGN
Manufacturers catalog numberSDCW1204PDSRGN
Manufacturer gradeKY3500
Material applicationCast Iron
Material gradeC2
Primary workpiece materialCast Iron
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
