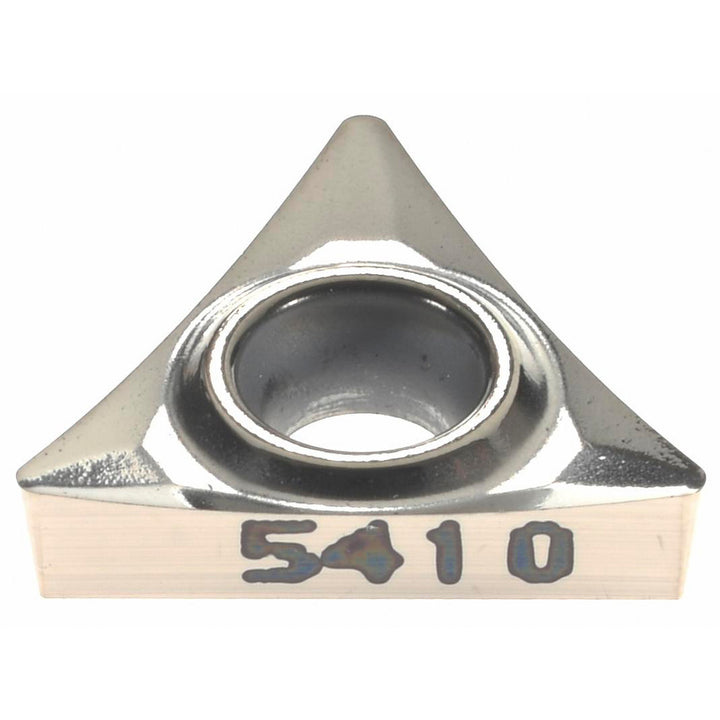

T - Triangle 1/4" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1623273
MFR# 1623273ISO/ANSI# TCGT110204Series Screw-On
$30.80List $37.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1623273 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeTCGT2151
Ansi size code2151
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Industry standard numberTCGT2151HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTCGT
Insert thickness in3/32
Iso insert codeTCGT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number1623273
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
