Kennametal

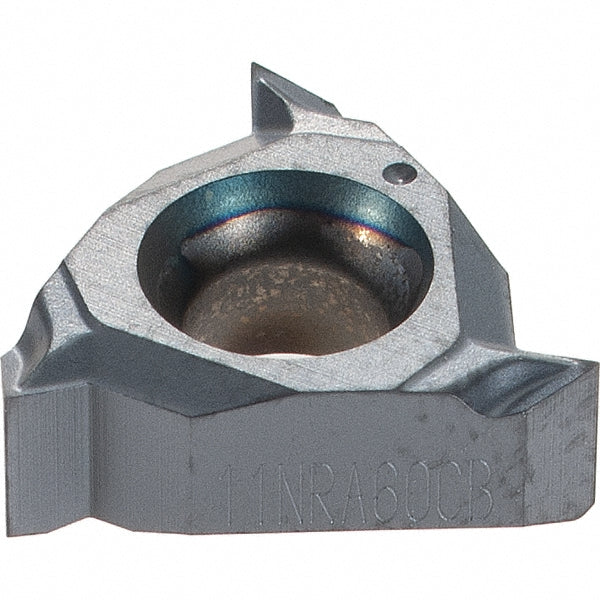

1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1679773
MFR# 1679773
$42.50List $51.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1679773 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
ChipbreakerCB
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.1280
Inscribed circle in1/4
Insert handRight Hand
Insert materialCarbide
Insert style11NR
Manufacturer gradeKC5025
Pitch (mm)0.50-1.50
Thickness0.1260
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
