Kennametal

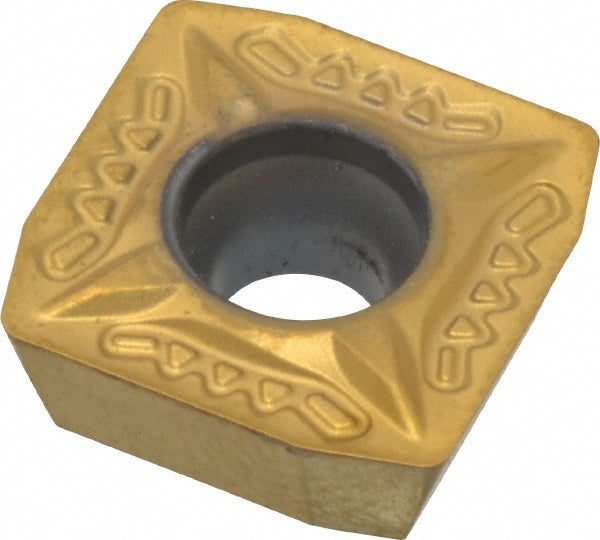

SDPT1204EDERGB Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1718015
MFR# 1718015ISO/ANSI# SDPT1204EDERGBCat# SDPT1204EDERGBSeries SDPT
$28.17List $34.38
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1718015 is a SDPT1204EDERGB solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSDPT43EDER8GB
Chip breakerGB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSDPT
Iso codeSDPT1204EDERGB
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDPT1204EDERGB
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1880
Thickness range0.1850 to 0.2000
Width in1/2
