Kennametal
SEKR1504AFENGP Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1719254
MFR# 1719254ISO/ANSI# SEKR1504AFENGPCat# SEKR1504AFENGPSeries SEKR
$40.54List $49.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description

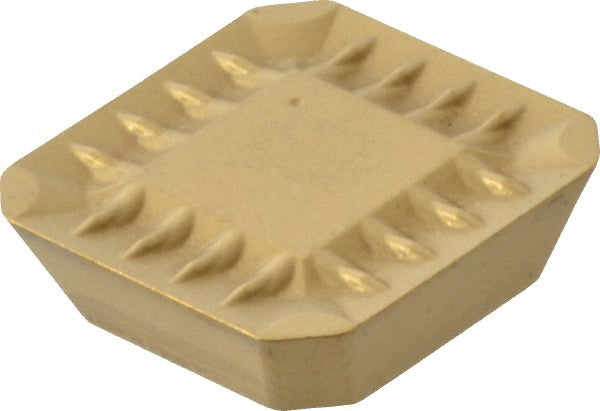

The Kennametal 1719254 is a SEKR1504AFENGP solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGP
Coating finishTiN
Coating processPVD
Corner radius0.0429
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size53
Insert size code53
Insert styleSEKR
Iso codeSEKR1504AFENGP
Manufacturers catalog numberSEKR1504AFENGP
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.4134
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle30
Relief angle20.00
Thickness0.1827
Thickness range0.1750 to 0.1850
