Kennametal

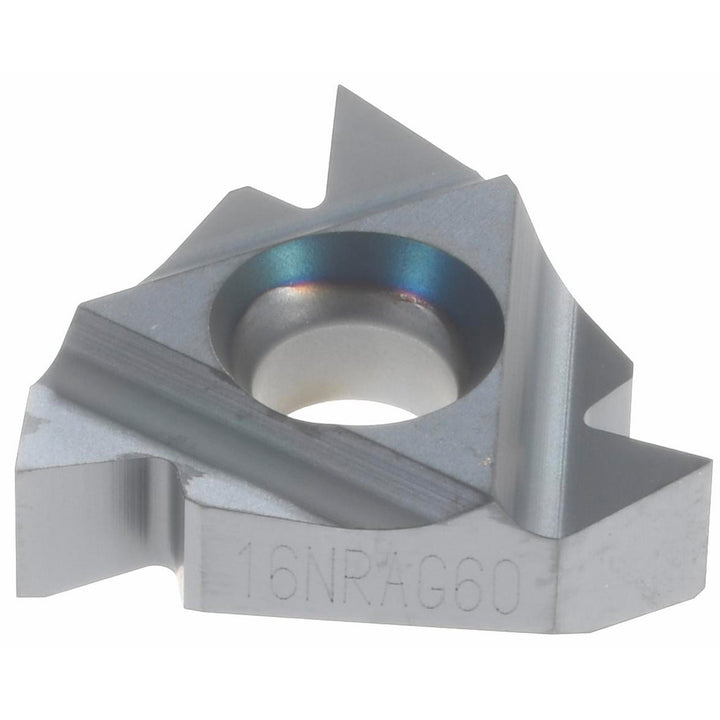

3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1724418
MFR# 1724418
$44.58List $54.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1724418 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.1551
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert style16NR
Manufacturer gradeKC5010
Pitch (mm)0.50-3.00
Thickness0.1430
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeInternal
