Kennametal

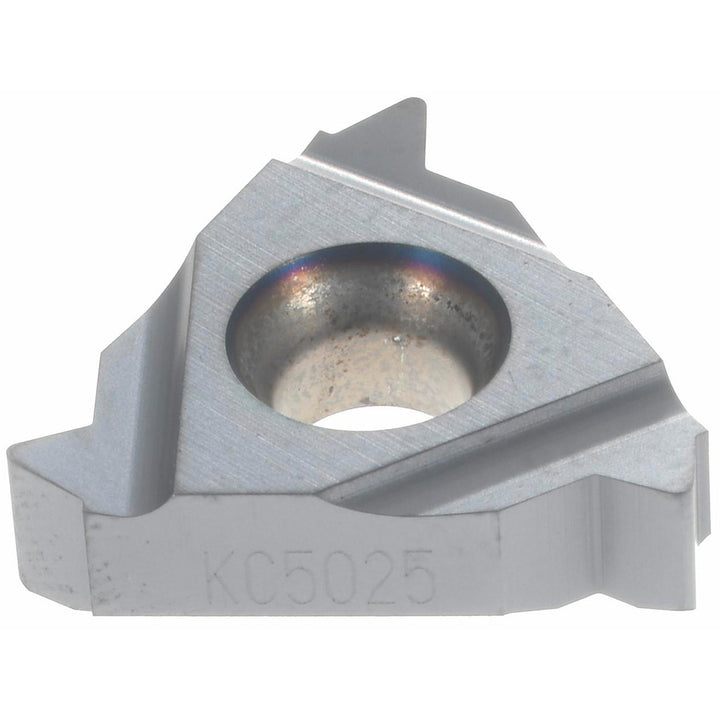

LT16ER10UN Carbide Insert, Grade KC5025, TiAlN - Kennametal 1724835
MFR# 1724835ISO/ANSI# LT16ER10UNCat# LT16ER10UN
$44.58List $54.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1724835 is a LT16ER10UN carbide indexable insert, grade KC5025, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Coating finishTiAlN
Coating processPVD
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0590
Hole diameter0.1551
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert styleER
Iso codeLT16ER10UN
Manufacturers catalog numberLT16ER10UN
Manufacturer gradeKC5025
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Thickness0.1430
Threads per inch10
Thread standardUN
Thread typeExternal
