Kennametal

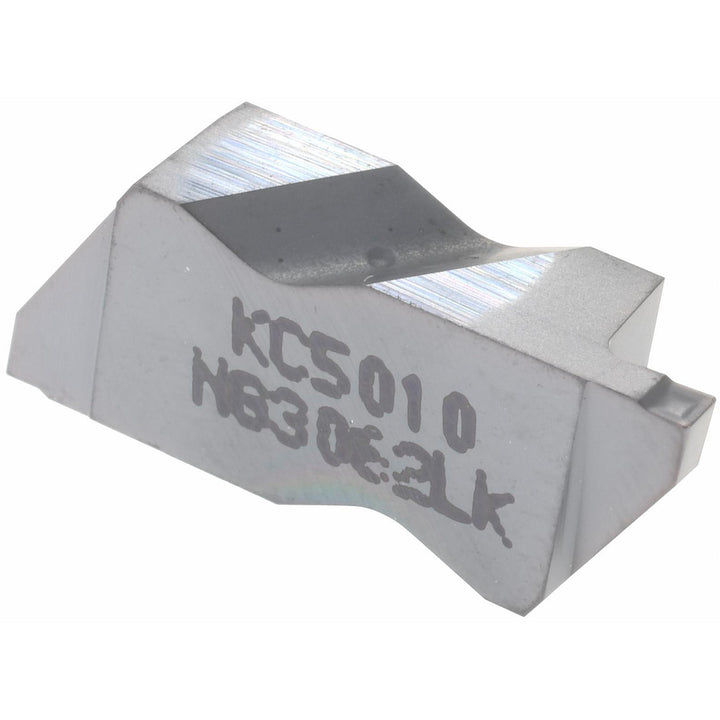

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1762299
MFR# 1762299Series Top Notch
$35.97List $43.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1762299 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3062
Insert styleNG
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
