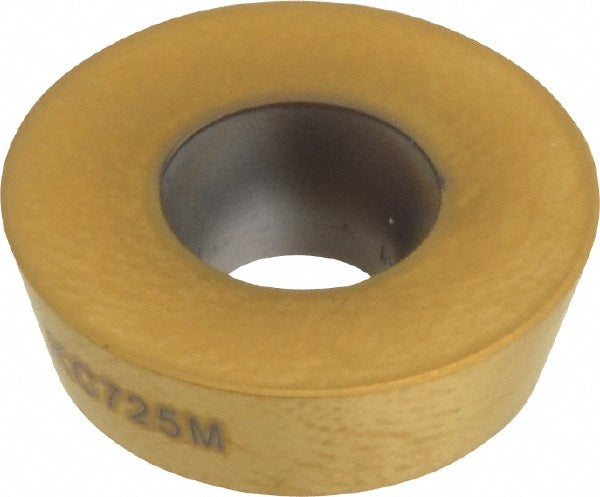

RDHX1604M0SGN Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1776013

Kennametal

RDHX1604M0SGN Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1776013

MFR# 1776013ISO/ANSI# RDHX1604M0SGNCat# RDHX1604M0SGNSeries RDHX

$30.71List $37.49 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1776013 is a RDHX1604M0SGN solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRDHX1604M0SGN
Chip breakerGN
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKDM-16
Cutting edge styleChamfered; Honed
Hole diameter0.2047
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1604
Insert styleRDHX
Iso codeRDHX1604M0SGN
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRDHX1604M0SGN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.1677
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.6299
