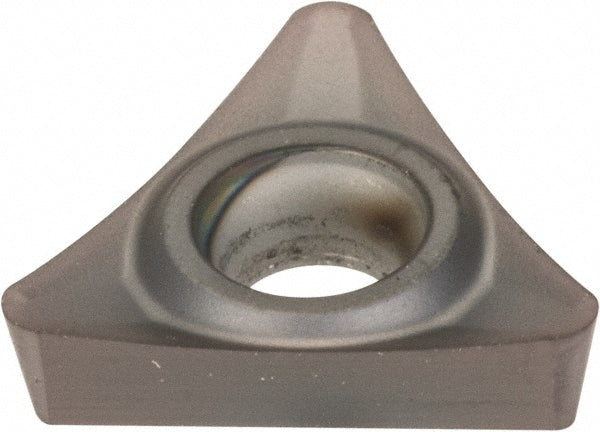

T - Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1785482

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1785482

MFR# 1785482ISO/ANSI# TPGT110208Series Screw-On

$29.99List $36.61 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1785482 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPGT2152
Ansi size code2152
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle60
Industry standard numberTPGT2152HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2152
Insert styleTPGT
Insert thickness in3/32
Iso insert codeTPGT110208
Iso size code110208
Length range0.4000 - 0.5000
Manufacturers catalog number1785482
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
