Kennametal

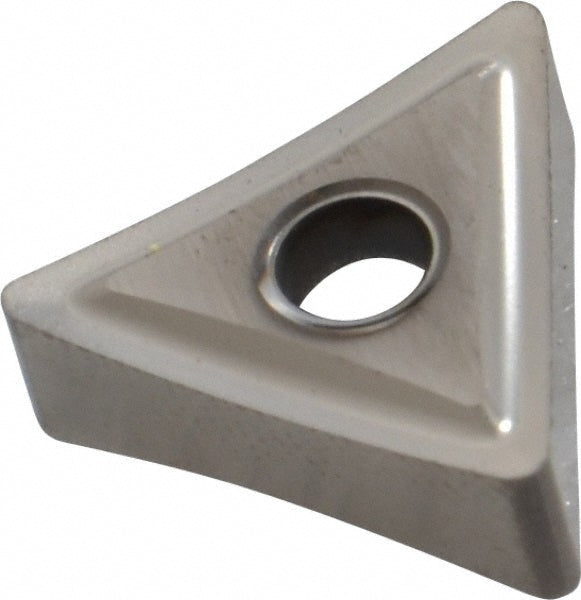

T - Triangle 3/8" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1785741
MFR# 1785741ISO/ANSI# TNGP160408Series KENLOC
$25.11List $30.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1785741 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeTNGP332
Ansi size code332
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNGP332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code332
Insert styleTNGP
Insert thickness in3/16
Iso insert codeTNGP160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturers catalog number1785741
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
