Kennametal

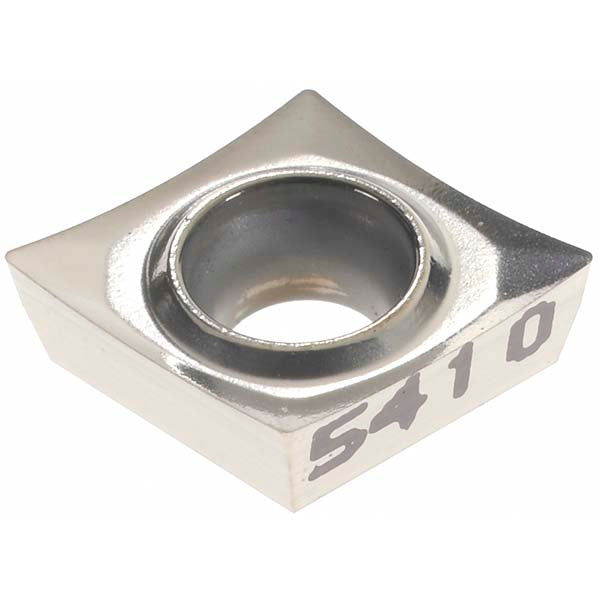

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1785748
MFR# 1785748ISO/ANSI# CPGT060202Series Screw-On
$27.04List $33.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1785748 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCPGT21505
Ansi size code21505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiB2
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCPGT21505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCPGT
Insert thickness in3/32
Iso insert codeCPGT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog number1785748
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
