Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1793746
MFR# 1793746Series A2
$26.59List $32.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

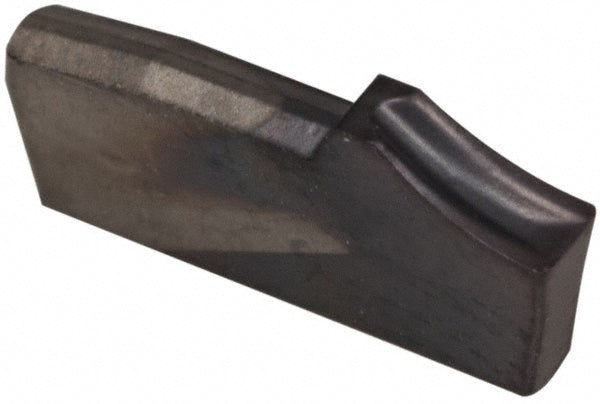

The Kennametal 1793746 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
ChipbreakerCM
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting height0.1457
Cutting tool applicationCut-Off; Grooving
Cutting width0.0630
Insert holding methodClamp
Insert materialCarbide
Insert seat size1
Insert size code016
Insert styleA2
Lead angle0
Lead angle directionNeutral
Manufacturer gradeKC5025
Material gradeC2; C6
Multi use toolYes
Relief angle2.00
