Kennametal
Carbide Insert, Grade KC5410, TiB2 - Kennametal 1796107
MFR# 1796107Series Top Notch
$32.13List $39.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5410
MaterialCarbide
CoatingTiB2
Description

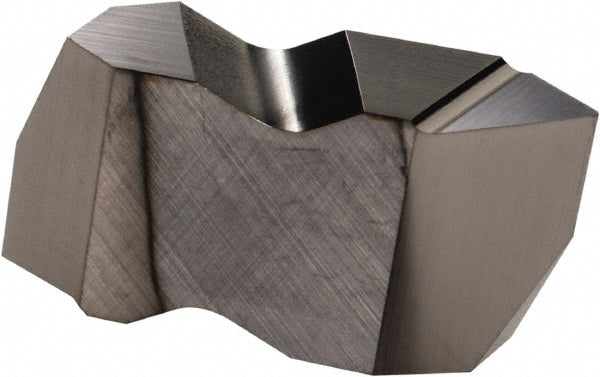

The Kennametal 1796107 is a carbide indexable insert, grade KC5410, TiB2 coated.
Specifications
Coating finishTiB2
Coating processPVD
Corner radius0.0067
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingTitanium Diboride
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTP
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKC5410
Material gradeC3; C4
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
