Kennametal

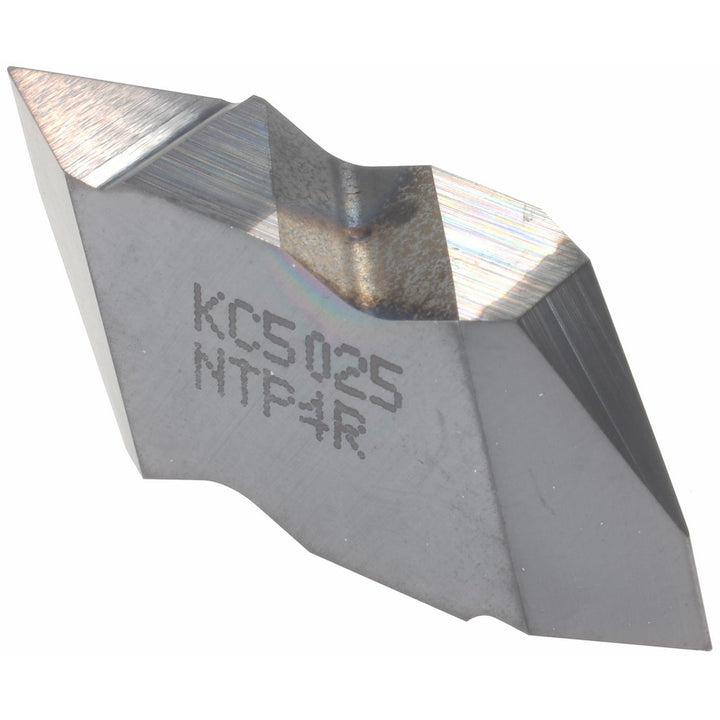

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1796110
MFR# 1796110Series Top Notch
$41.84List $51.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796110 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0065
External pitch1.25-6.25 mm; 4-20 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleNTP
Internal pitch2.00 to 6.25 mm; 4 to 12 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.2551
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1280
