Kennametal

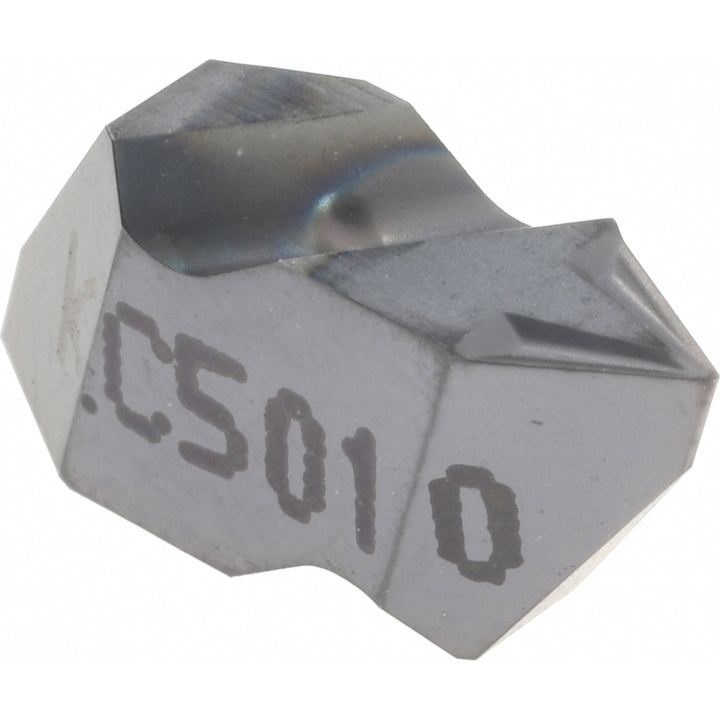

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796116
MFR# 1796116Series Top Notch
$31.49List $38.44
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796116 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
ChipbreakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingTiAlN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleNT
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
