Kennametal

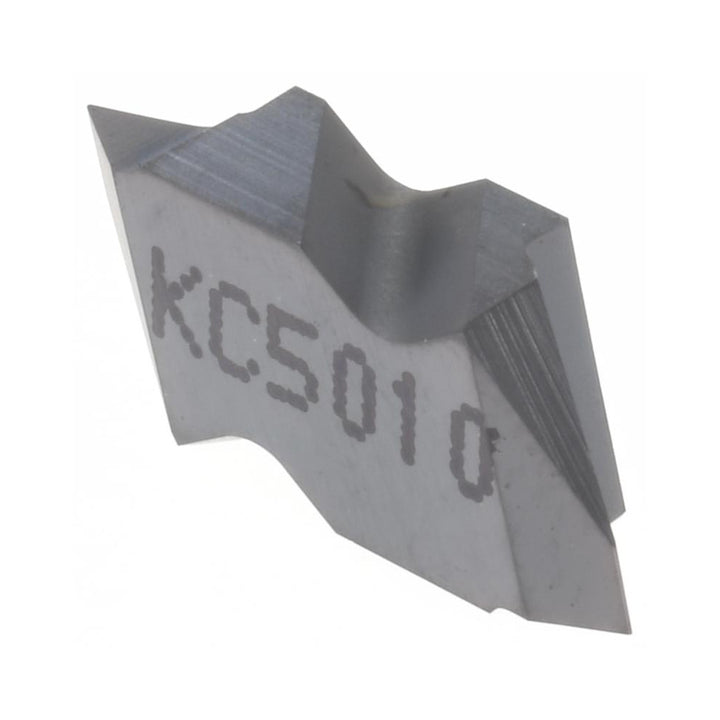

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796156
MFR# 1796156Series Top Notch
$31.35List $38.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796156 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0031
External pitch0.60-1.75 mm; 14-44 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNTK
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1098
