Kennametal

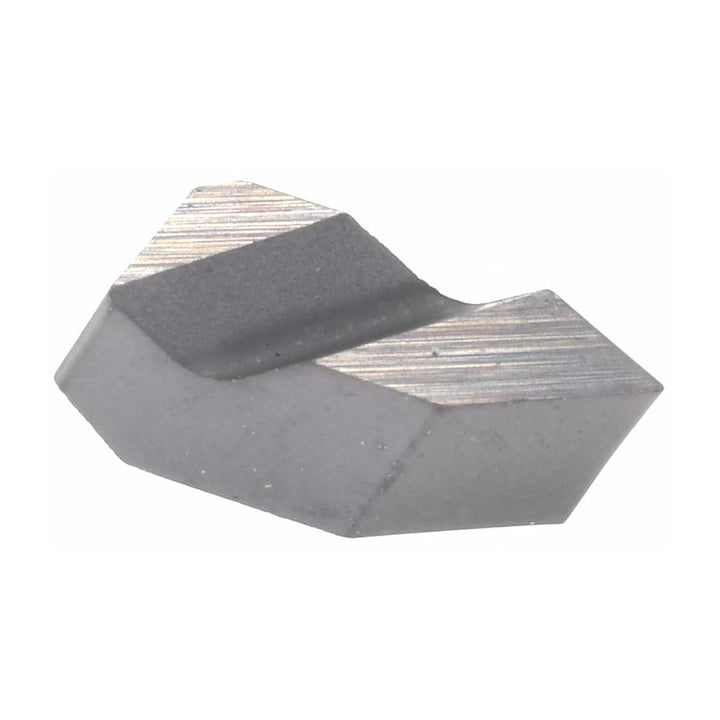

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799239
MFR# 1799239Series Top Notch
$21.36List $26.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1799239 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0031
Finish coatingTiAlN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size1
Insert styleNT
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1
Thread standardPartial Profile 60 Degree
Thread typeInternal
Tip to top of insert0.0429
