Kennametal

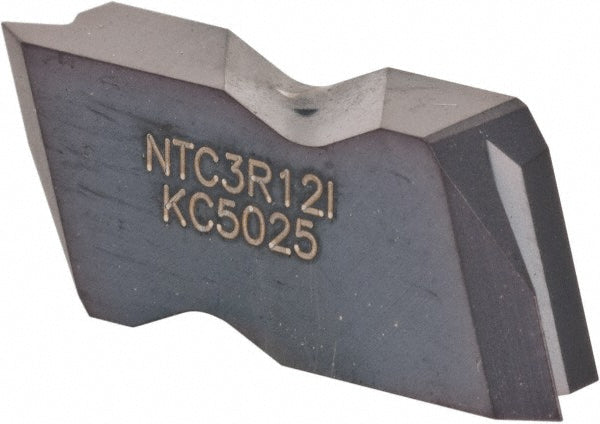

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799389
MFR# 1799389Series Top Notch
$34.17List $41.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1799389 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTC
Internal pitch12 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardUN
Thread typeInternal
Tip to top of insert0.1480
