Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799390
MFR# 1799390Series Top Notch
$34.17List $41.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

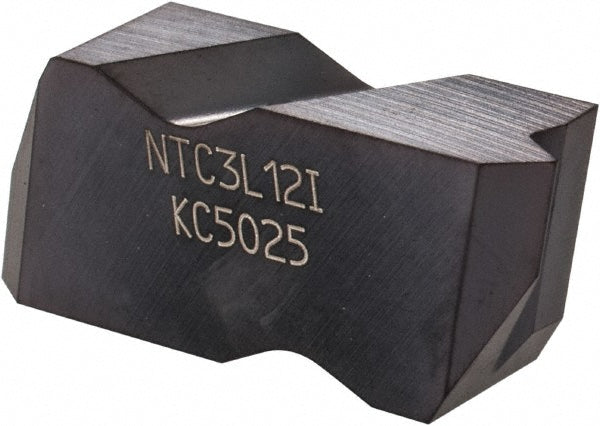

The Kennametal 1799390 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Finish coatingTiAlN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNTC
Internal pitch12 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardUN
Thread typeInternal
Tip to top of insert0.1480
