Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799445
MFR# 1799445Series Top Notch
$39.79List $48.56
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

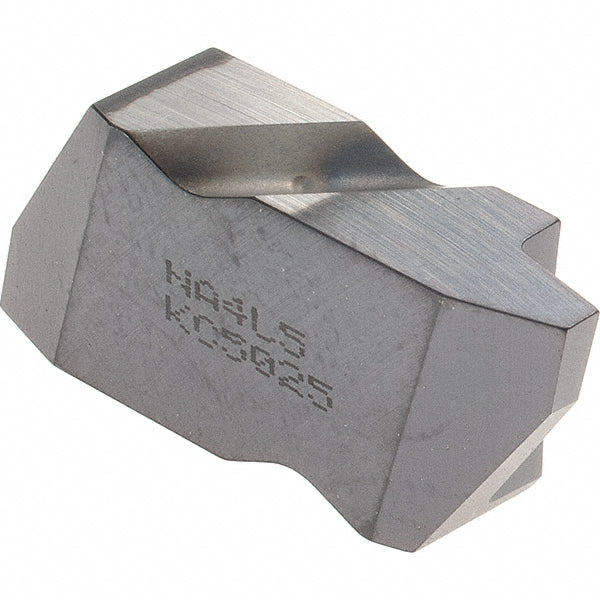

The Kennametal 1799445 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Finish coatingTiAlN
Included angle29
Insert handLeft Hand
Insert materialCarbide
Insert size4
Insert styleNA
Internal pitch5 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.2551
Thread standardAcme
Thread typeInternal; External
Tip to top of insert0.2020
Width of cutting tip0.0689
