Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799576
MFR# 1799576Series Top Notch
$33.76List $41.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

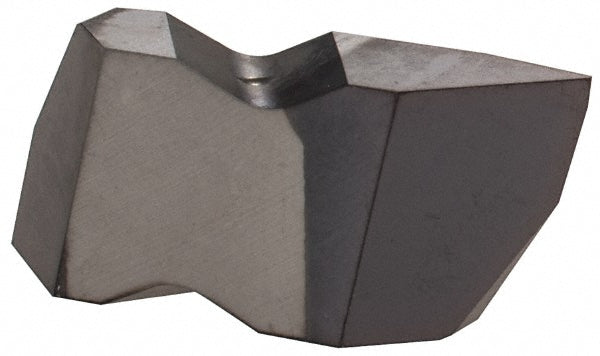

The Kennametal 1799576 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0067
Finish coatingTiAlN
Included angle45
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTB
Internal pitch8-16 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardAmerican Buttress
Thread typeInternal; External
Tip to top of insert0.1642
