Kennametal

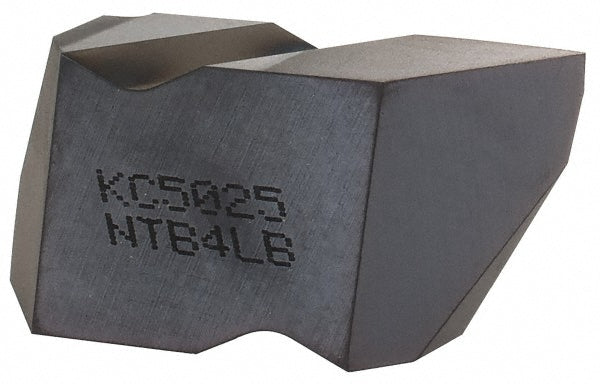

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799606
MFR# 1799606Series Top Notch
$42.73List $52.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1799606 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0098
Finish coatingTiAlN
Included angle45
Insert handLeft Hand
Insert materialCarbide
Insert size4
Insert styleNTB
Internal pitch4-6 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.2551
Thread standardAmerican Buttress
Thread typeInternal; External
Tip to top of insert0.0161
