Kennametal

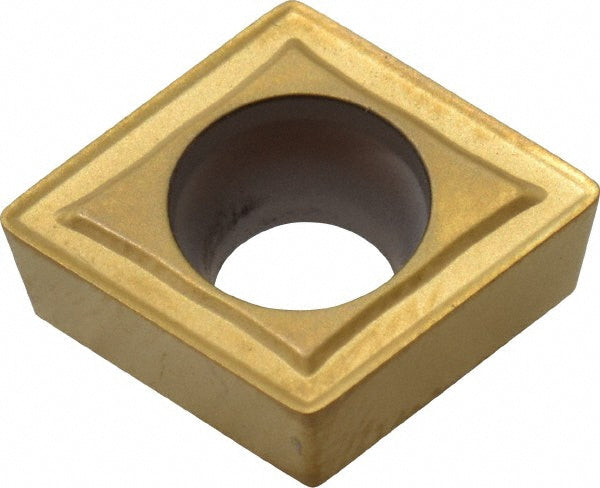

C - Diamond (Rhombic) 80-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1802547
MFR# 1802547ISO/ANSI# CCMT09T304Series Screw-On
$28.09List $33.69
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1802547 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeCCMT3251
Ansi size code3251
Chip breakerMW
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3251MW
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number1802547
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeYes
