Kennametal

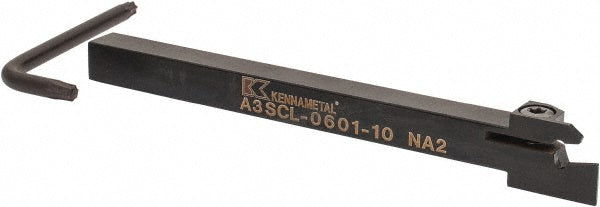

Indexable Cut-Off - Kennametal 1806713
MFR# 1806713Series A3
$174.02List $212.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1806713 indexable cut-off. Series A3.
Specifications
Compatible insert size codeA2016...
Coolant throughNo
Hand of holderLeft
Head height0.6000
Head length0.7900
Insert holding methodScrew
Insert seat size1
Maximum depth of cut0.3937
Maximum insert width0.0630
Maximum workpiece diameter0.7900
Overall length in5
Shank height0.3750
Shank width diameter0.3750
Toolholder styleA3SC
