Kennametal

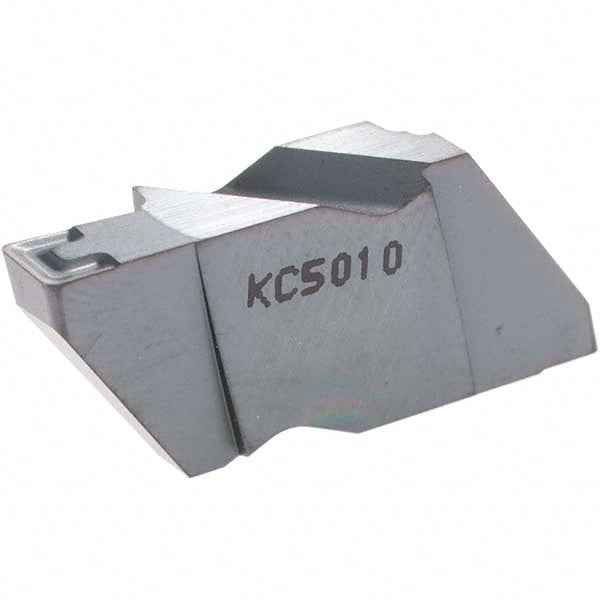

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1808488
MFR# 1808488Series Top Notch
$47.81List $58.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1808488 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0225
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.4530
Insert materialCarbide
Insert seat size4
Insert size4189
Insert styleNG
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNG4189R/LK
Multi use toolNo
RakePositive
Rake angle10
