Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1817588
MFR# 1817588Series Top Notch
$27.85List $34.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

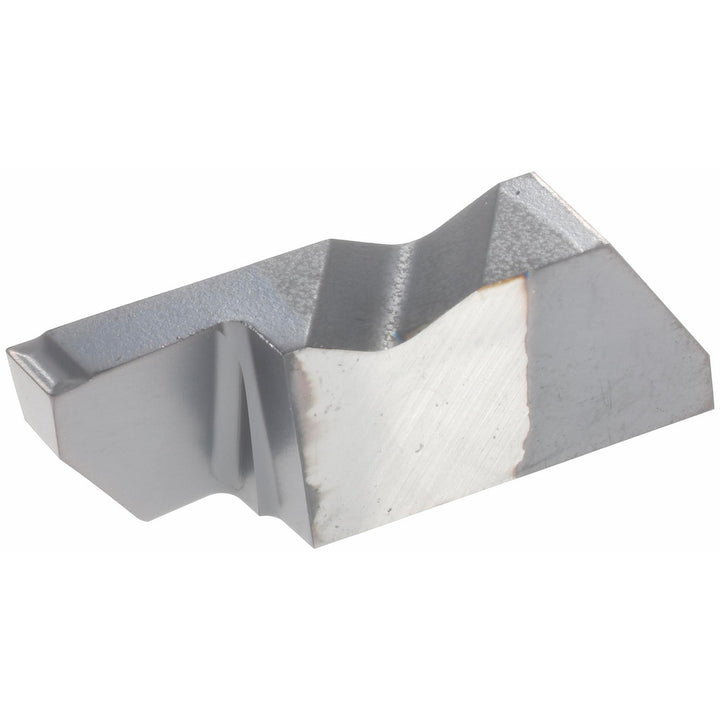

The Kennametal 1817588 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3125
Insert styleNFD
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
