Kennametal

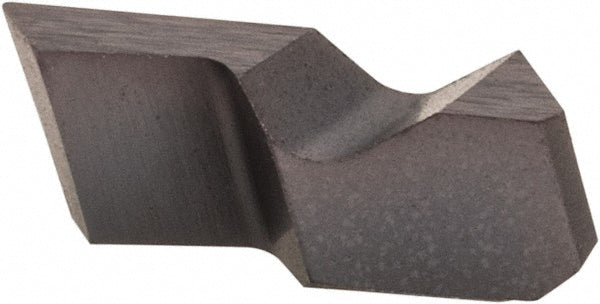

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1817700
MFR# 1817700Series Top Notch
$25.90List $31.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1817700 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree64
Insert handLeft Hand
Insert height0.1000
Insert materialCarbide
Insert size1062
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0752
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Msc manufacturer numberNG1062L
Multi use toolNo
RakeNeutral
