Kennametal

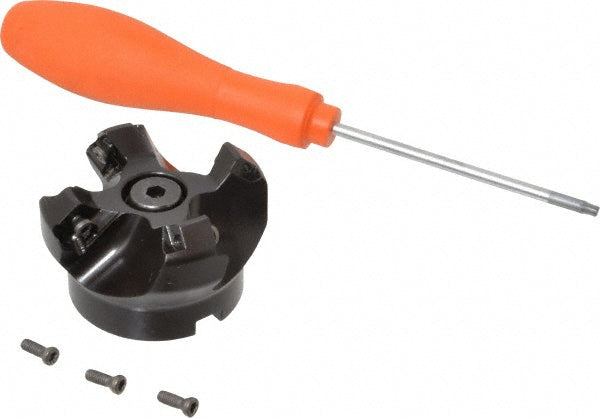

Indexable Milling Cutters - Kennametal 1817867
MFR# 1817867Series KSSM
$539.79List $658.88
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Kennametal 1817867 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSEKT 1404
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Keyway width0.3300
Maximum body diameter2.5150
Maximum cutting diameter2.5150
Maximum depth of cut0.2600
Maximum rpm22500
Minimum cutting diameter1.9700
Number of cutter inserts4
Number of flutes4
Overall height1.5750
Pitch typeMedium
