Kennametal

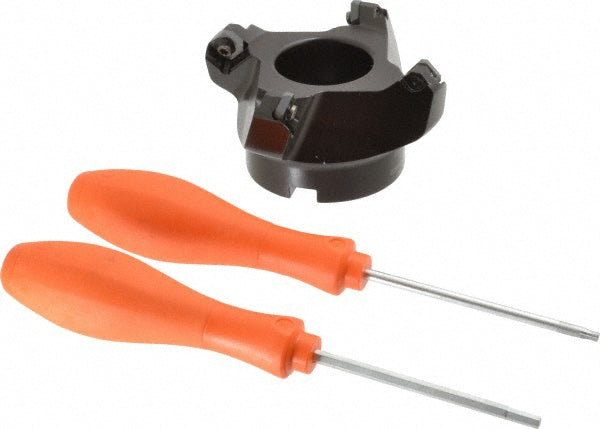

Indexable Milling Cutters - Kennametal 1817870
MFR# 1817870Series KSSM
$671.47List $819.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Kennametal 1817870 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in1
Compatible insert size codeSEKT 1404
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter2.1902
Insert holding methodScrew
Keyway width0.3900
Maximum body diameter3.6910
Maximum cutting diameter3.6910
Maximum depth of cut0.2600
Maximum rpm18000
Minimum cutting diameter3.1500
Number of cutter inserts4
Number of flutes4
Overall height1.9690
Pitch typeCoarse
