Kennametal

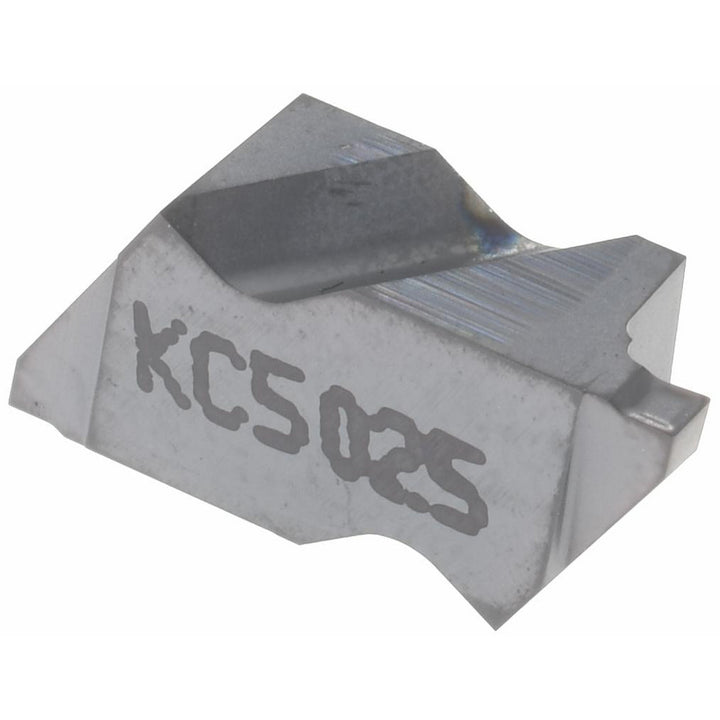

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1817975
MFR# 1817975Series Top Notch
$34.27List $41.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1817975 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Cutting width0.0469
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size2047
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
