Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1818008
MFR# 1818008Series Top Notch
$34.27List $41.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

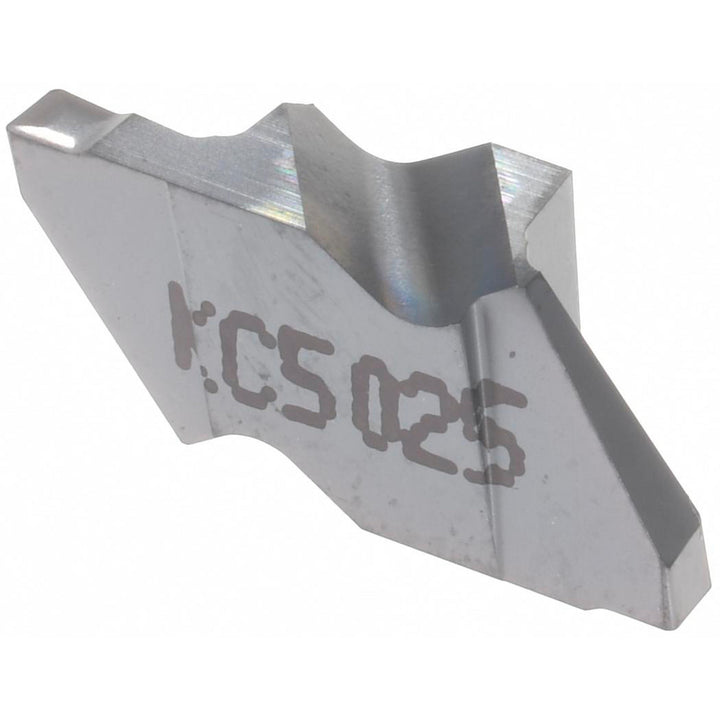

The Kennametal 1818008 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.2190
Insert materialCarbide
Insert size2062
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNG2062R/LK
Multi use toolNo
RakePositive
Rake angle10
